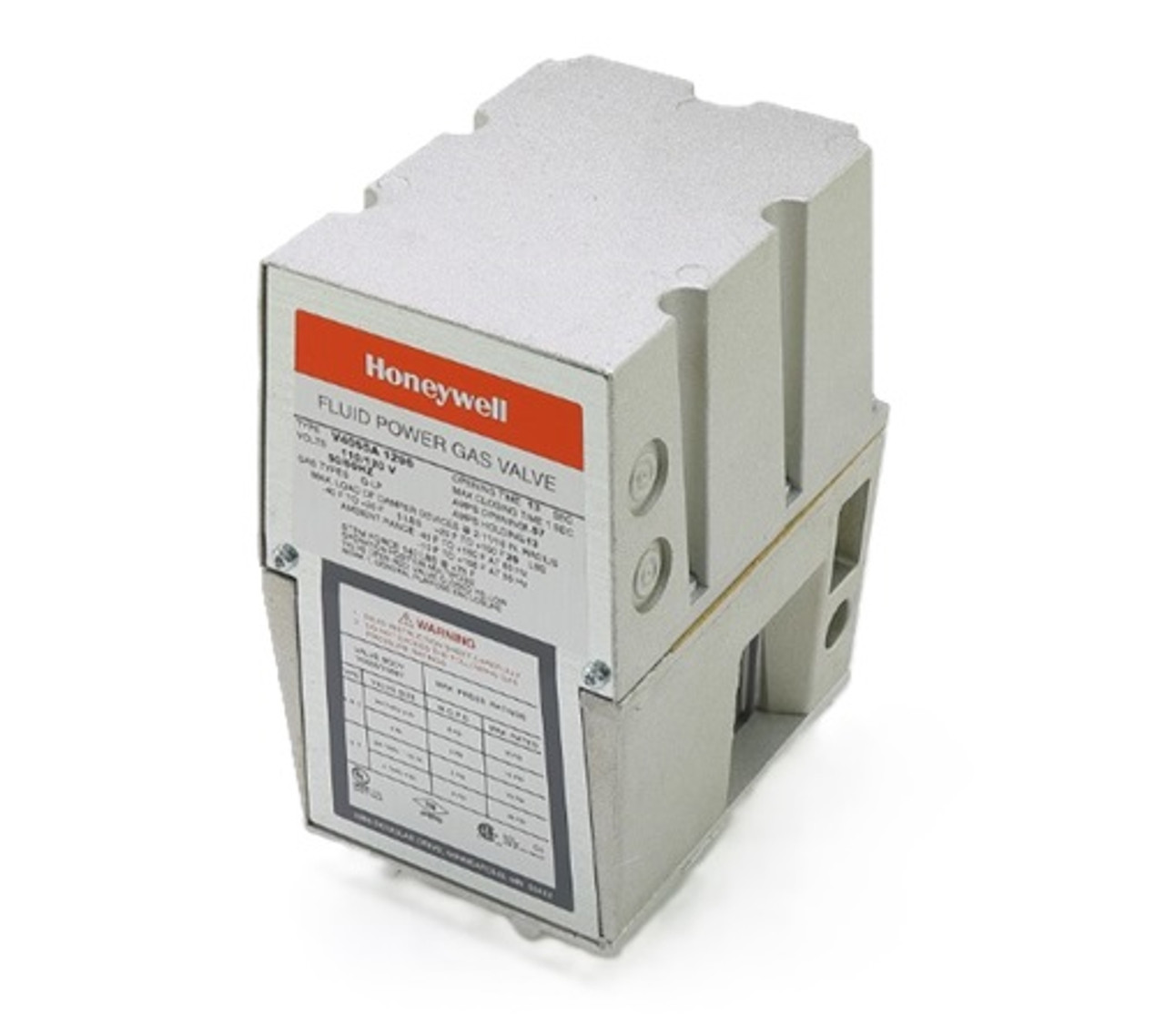

Honeywell V4055A1296 Low Pressure ON-OFF Actuator (Used w/ V5055/V5097A,B Valve Bodies)

Use in combination with V5055 or V5097 Gas Valves to control gas supply to commercial and industrial burners.

Features:

• Use where smooth light off is important.
• One-second maximum closing time.
• Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
• Mount in any position directly to valve bonnet with three setscrews.
• Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
• Damper Shaft: No
• Timing (Closing) < 1 sec: Yes
• Timing (Opening): 13 sec
• Auxiliary Switch Contact Ratings (120 Vac): 9.8 AFL, 58.8 ALR, 1/2 hp
• Auxiliary Switch Contact Ratings (240 Vac): 4.9 AFL, 29.4 ALR, 1/2 hp
• Internal Auxiliary Switch: Yes – adjusted to 90% stroke
• Proof of Closure Auxiliary Switch: No
• Used With: V5055;V5097 Gas Valves
